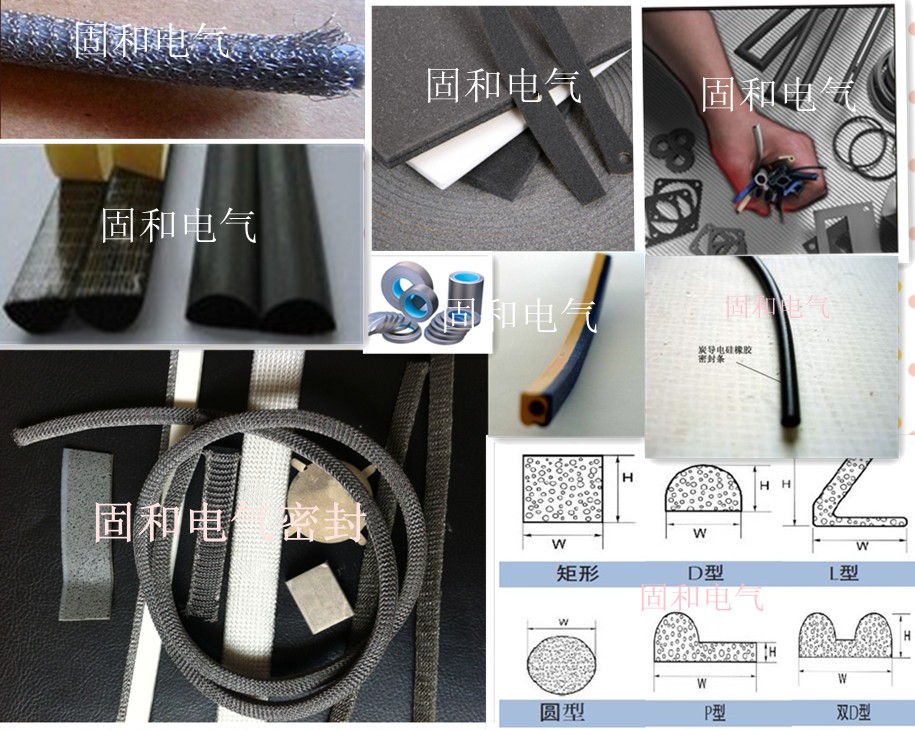

Conductive seal strip
Solid and electrical conductive sealing strip is a kind of elastic very good gasket materials, metal network weaving materials and rubber core materials can be chosen. Can sex good, the life is long compression, and cheaper prices. Widely used in case, cabinet, shielded enclosure, shielding cuboid-shaped aperture place shielding seal, especially some groove installation, surface mount occasion.
Conductive seal strip performance:
Frequency field Monel silk Aluminium Tin copper Stailess steel
10 KHz H 45 40 60 40
100 KHz H 49 45 65 44
1 MHz H 60 60 85 58
1 MHz E 125 125 125 125
10 MHz E 120 120 120 120
100 MHz E 100 100 108 100
400 MHz P 98 95 99 94
1 GHz P 85 76 78 76
10 GHz P 80 65 62 60
